商品描述
用途：

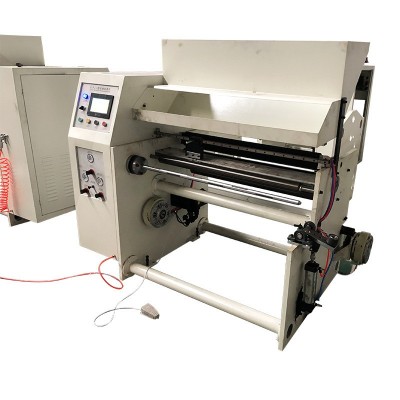

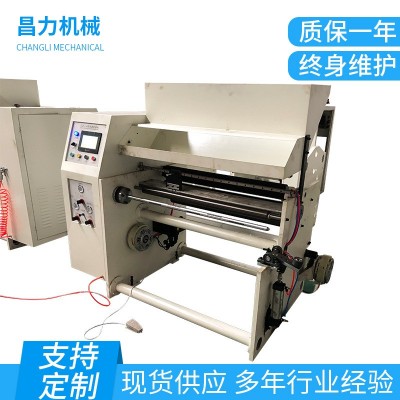

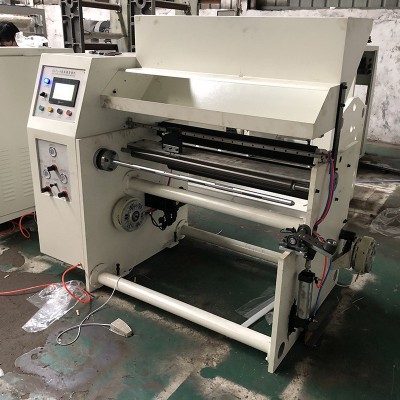

该机是生产硬纸芯、软纸芯、等小卷筒纸(礼品纸、广告纸、墙纸、各种包装纸）的专用设备。
特点：
放卷：气压提升式放卷架、连体式放卷架等
收卷：连续式气涨轴、电脑控制自动充气与打开（可任意调节收卷轴直径）
切断：采用无杆汽缸往返式自动隔断
主控：伺服电机定长送料，在高速运转中保存高精度
具有定长精度高，收卷整齐，操作简便，外型美观，性能稳定等功能，还可以和全自动收缩包装机配套形成生产线。
use:
This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).
Features:
Unwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.
Winding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily)
Cut off: use rodless cylinder reciprocating automatic partition
Main control: Servo motor fixed length feeding, high precision during high speed operation
It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
主要技术参数Main Technical Parameters

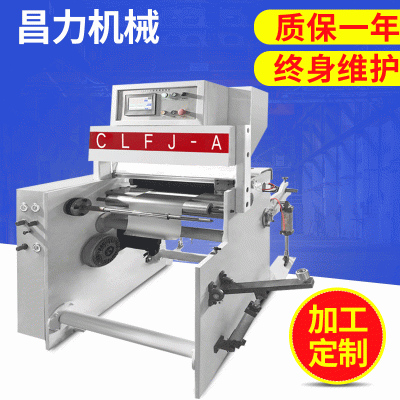

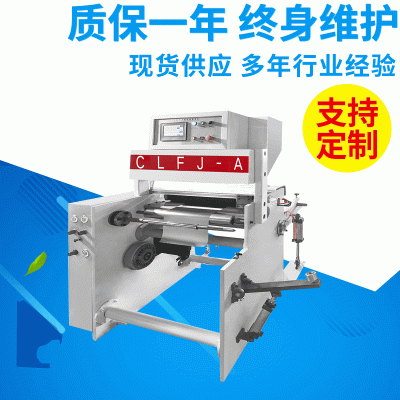

机型Model | CLFJ-A600 | CLFJ-A800 | CLFJ-A1000 | |
卷材宽度MAX.Parent Web Width | 600mm | 800mm | 1000mm | |
放卷直径Max.parent Web Diameter | Φ600mm | Φ600mm | Φ600mm | |
收卷直径Max.Rewinding Diameter | Φ260mm | Φ260mm | Φ260mm | |
速度Max.Machine Speed | 10-150m/min | 10-150m/min | 10-150m/min | |
定长精度Fixed length accuracy | ±5mm | ±5mm | ±5mm | |
总功率Total Power | 2KW | 2.3KW | 3KW | |
重量Machine Weight | 1000kg | 1200kg | 1500kg | |
外形尺寸Overall Dimensions 工作电压 Working Voltage | 1300×1380×1600mm 二相220V50HZ | 1300×1600×1600mm 二相220V50HZ | 1300×1800×1600mm 二相220V50HZ | |
纸芯规格Paper core specification | 20mm, 25mm, 38mm等(or according to your requirement) | |||
