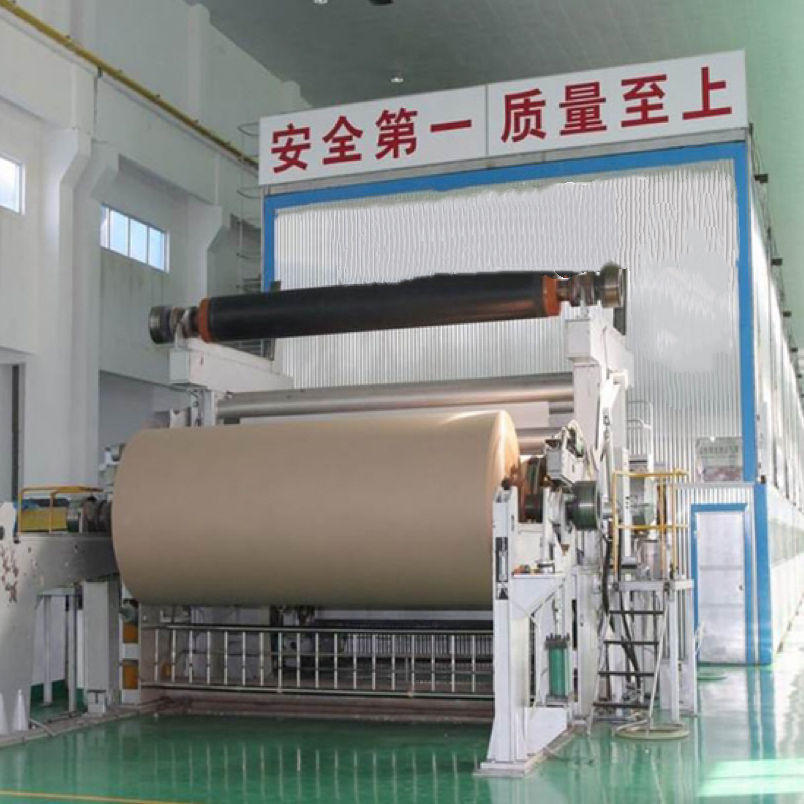

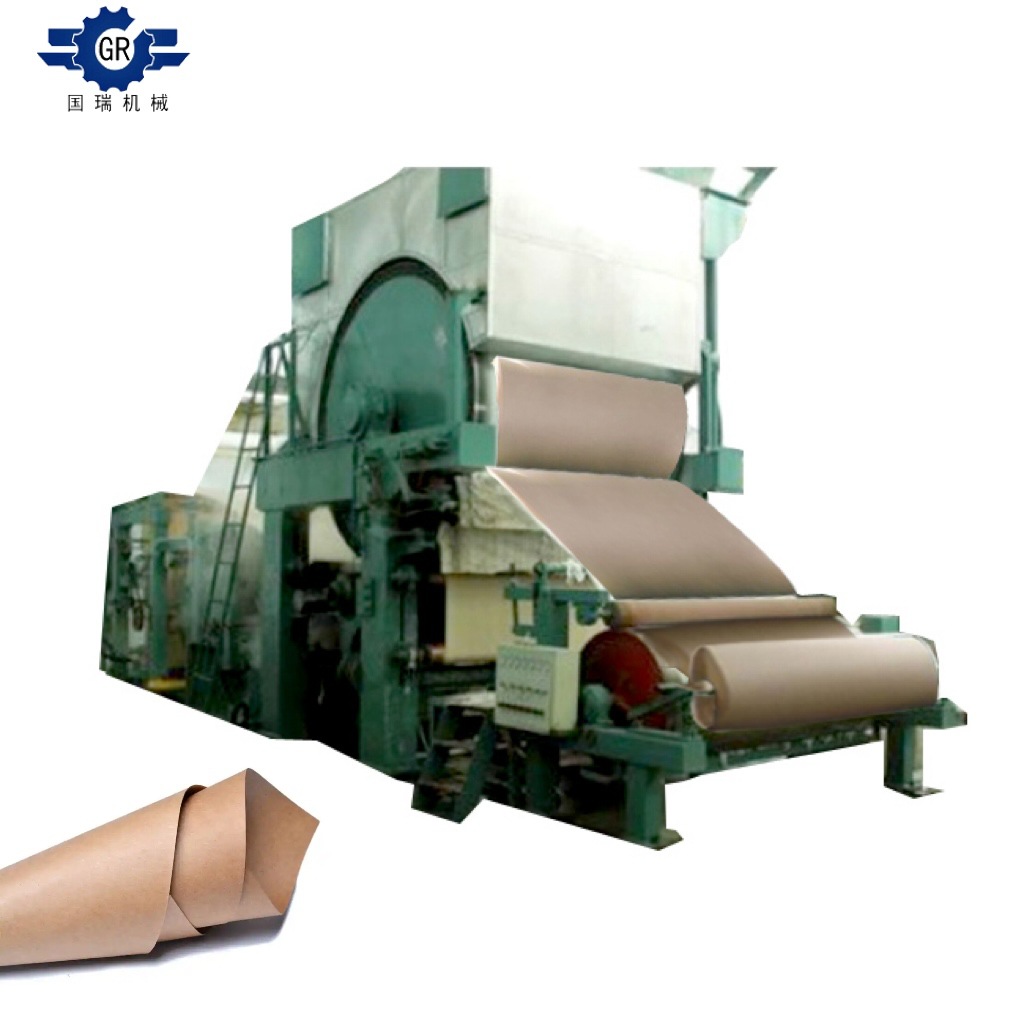

1092mm牛皮纸造纸机
1092mm Kraft paper making machine
技术参数
Technical parameters
| 品名/Production Name | 1092mm牛皮纸造纸机1092mm Kraft paper making machine |
| 型号Number | 1092 |
| 产品名称/Output paper | 牛皮纸/瓦楞原纸 Kraft paper /corrugated paper |
| 日产量/Daily Capacity | 4-6T/D |
| 原材料Raw material | 废纸/waster paper |
| 净纸宽度/Net Paper Width | 1100-1200mm |
| 产品克重/Product weight(GRM) | 100-150g/m² |
| 设计车速/Design Speed | 100-120m/min |
| 工作车速/Work speed | 70-100m/min |
| 调速方式/speed regulation mode | 变频调速/VVVF |
| 布浆方式/pulp distributing way | 园网活动弧形板式/Circular arc plate of garden net |
| 压榨脱水方式/PressDehydration way | 烘缸托辊/dryer roller |
| 烘干方式/drying way | 蒸汽/steam |
| 安装方式/Installation way | 左、右手机/left and right model |
| 班次操作人员/class people | 5-6人/班 5-6people/class |

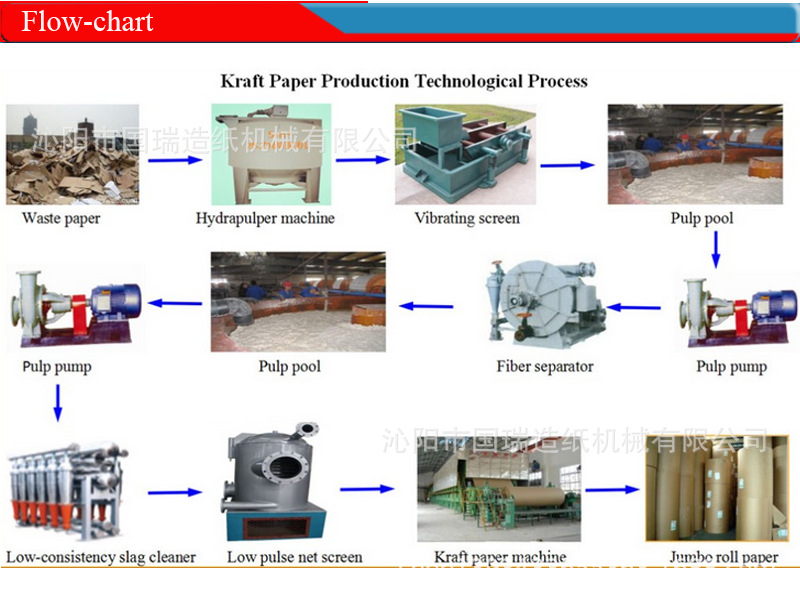

工艺流程
Process flow
备注：此流程图仅供参考 （this flow chart just for reference）

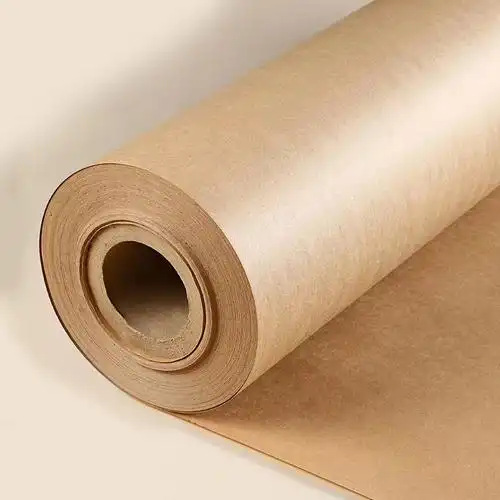

纸张样品图
Output paper samples
原料展示
Raw material show
其他产品
Other products
工厂包装
Factory package
1.木质包装;
2.标准出口包装;
3.根据客户的要求。
1. Wood packaging;
2. Standard export packaging;
3. According to customer requirements.
企业简介
Company profiles
国瑞造纸机械（Guo Rui Papermaking Machinery）,全称为沁阳市国瑞造纸机械有限公司。国瑞造纸机械（GRPM）成立于2009年，公司由拥有超过30年造纸生产和造纸技术服务经验的资深人士创建。国瑞造纸机械（GRPM）是国内专业的造纸机械设备生产商，主要提供各种型号的卫生纸机、文化纸机、瓦楞纸机、特种纸机、单缸单网、多缸多网、长网多缸、叠网多缸等系列造纸机设备，同时提供打浆机、磨浆机等一系列制浆设备和复卷机、切纸机、折叠压花机等各类型纸加工设备。
国瑞造纸机械（GRPM）所生产产品已经覆盖国内29个省市自治区，同时远销非洲、中亚、俄罗斯、伊朗、美国、泰国等近30个国家。30年的深厚积累，我们以匠心打造高精度造纸机械产品；以创新打造高效造纸机械产品，以科研不断探索造纸技术新境界！每一次生产线的交付，是产品的交付亦是作品的呈现，更是服务的开始!
Guo Rui Papermaking Machinery (Guo Rui Papermaking Machinery), the full name of Qinyang City Guorui Papermaking Machinery Co., LTD. Guorui Paper Machinery (GRPM) was founded in 2009 by senior people with more than 30 years of experience in paper production and technical services. Guorui Paper Machinery (GRPM) is a professional manufacturer of paper machinery and equipment in China, mainly providing various types of sanitary paper machine, cultural paper machine, corrugated paper machine, special paper machine, single cylinder single net, multi-cylinder multi-net, long net multi-cylinder, multi-cylinder series of paper machine equipment. At the same time, we provide a series of pulping equipment such as beater, pulper, rewinding machine, paper cutting machine, folding embossing machine and other types of paper processing equipment.
The products produced by GRPM have covered 29 provinces and autonomous regions in China, and have been exported to nearly 30 countries such as Africa, Central Asia, Russia, Iran, the United States and Thailand. 30 years of profound accumulation, we create high-precision paper machinery products with ingenuity; Create efficient papermaking machinery products with innovation, and constantly explore a new realm of papermaking technology with scientific research! The delivery of each production line is the delivery of the product, the presentation of the work, and the beginning of the service!
工厂实景
Factory scene
合作伙伴
Cooperative partner
